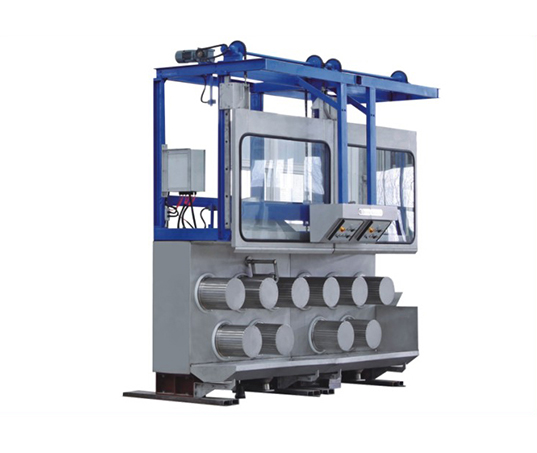

顺泰国际appDQS series stretching machine is stretching the fiber tow that coming from

the spinning machine in certain draft ratio, meet the requirements of

顺泰国际appthe production process.

顺泰国际appEquipment structure:

顺泰国际app1.Stretching roller: Roller body is made by 904L,the surface with a longitudinal groove.

2.Driving: Each stretch roller is driven and controlled by a single frequency conversion motor.

3.Frame:Steel-welded frame, surface covered by 2mm-thick 904L plate.

顺泰国际app4.Spray device and collecting tank:Spray branch pipe with the roller body in parallel, add the water to the drafting roller surface. External adopts flange connection (take lenzing spray form and the liquid receiving tank exhaust form)

顺泰国际app5. Suction hood: Made by 316L stainless steel, eliminate the waste gas produced by tow.

顺泰国际app6. Sealing window:The window frame is made by 316L, glass uses toughened glass, motor drive; guaranteed the quality of sealing and ensure no leak of gas.

Technical Parameters:
