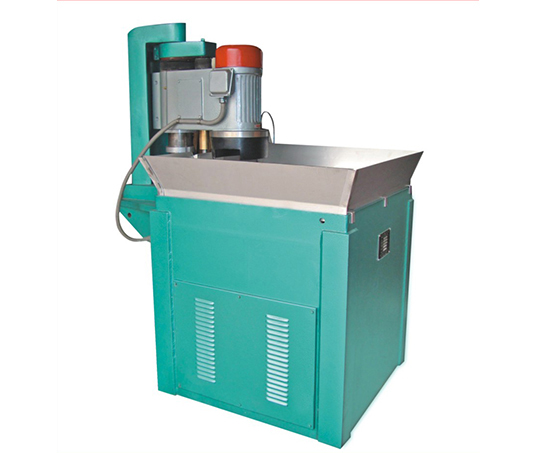

LMH755 Upright Ring Grinding Machine
LMH755 upright ring grinding machine is a special designed machine for grinding of the cutter disc for the tow cutter.
The maximum outside grinding diameter of the disc is 910mm while the minimum inner diameter is 490mm.
The machine is compact in design and stable in operation, with small occupation area, precision feeding control, and easy operation. It integrated both rough and fine grinding.
Technical parameters:
Type | LMH620 | LMH755 | |
Maximum outside diameter of the disc | Φ780mm | Φ910mm | |
Minimum inner diameter of the disc | Φ460mm | Φ490mm | |
Rotate speed of the grinding head | 1440r/min | ||
Turning direction of the grinding head | Clockwise(look down) | ||
Rotate speed of the turn table | 2.1r/min | ||
Turning direction of the turn table | Anticlockwise(look down) | ||
Motor for the grinding head | Speed: 1440r/min; Power: 2.2kw | ||
Deceleration motor for the turn table | Gear worm speed reducer, output speed 2.1r/min; Speed of the motor 1440r/min, Power of the motor 0.55kw. | ||
Recycling coolant pump | Type: AOB-25 Power of motor: 0.09kw Flow: 25L/min Lift: 4m | ||
Volume of water tank | 0.13 m3 | ||
Coolant | Water | ||
Dimension (Length×Width×Height) | (1430×950×1820)mm | (1524×990×1692)mm | |
Weight | 1500kg | 2000kg | |
