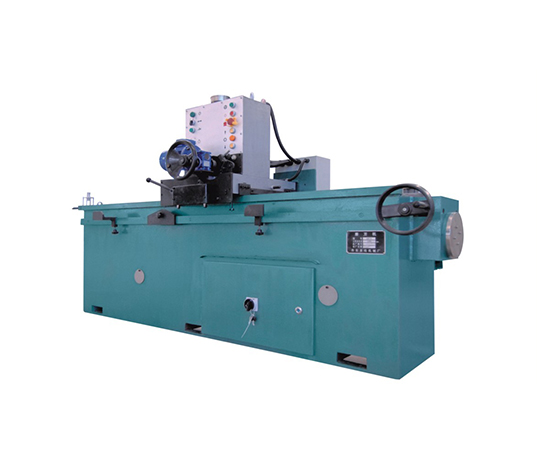

DM710 Grinding machine is the special equipment for grinding the cutter of the water flow cutting machine. It could grind 6 cutter blade at the same time, with high grinding efficiency and high consistency to ensure that the cutter of the cutting machine.
Technical Parameters:
Type | DM710 | ||||
Length table | 1000mm | ||||
Horizontal speed | 0.9m/min | ||||
The Grinding motor speed | 2800r/min | ||||
Grinding cylinder | Cupφ150×80 | ||||
The Grinding head route | Crosswise 1200mm Vertical 180mm | ||||
Motor power | Grinding motor: 3kw | ||||
Infeed motor: 0.25kw | |||||
Feed motor: 0.18kw | |||||
Coolant pump: 0.12kw | |||||
The numbers of the clamped knife | 6 | ||||
Outline dimension | 2500×955×1370(mm) | ||||
Weight | 1.5T | ||||
Grinding motor | Persker KCS70.12-2 | Power | 3kw | Speed | 2800rpm |
Infeed motor | NORD SK 12-71S4 | Power | 0.25kw | Speed | 26rpm |
Feed motor | MOTOVARIO NMRV030 | Power | 0.18kw | Speed | 280rpm |
